EverActive UC4200
This is a new charger that occupies the podium in terms of versatility. In addition to its wide compatibility, it is also equipped with advanced features, making it one of the best chargers in our range.
We invite you to familiarize yourself with the presentation of the everActive UC-4200 charger
The UC4200 charger is focused on maximum compatibility - we can charge any Ni-MH batteries in the following sizes: R6 AA, R03 AAA, R14 C, SC, R20 D and 9V batteries. In addition, the UC4200 also supports Li-ion batteries with a voltage of 3.6/3.7V, their high-voltage alternative - Li-HV, whose rated voltage is 3.85V and Li-FePO4 batteries. For Lita-based batteries, the charger will support sizes such as: 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700- also protected, 22650, 25500, 26500, 26650, 32650, 33600, 16340 R-CR123e. The maximum span of the sledge is as much as 76mm, which will ensure the ability to charge the increasingly popular 20700 and 21700 batteries in the version with electronic protection.
Li-ion/Li-HV and LiFePO4 batteries are charged very accurately using the CC/CV method with a termination of approx. 100mA. This guarantees complete safety and full charging of any battery, even heavily degraded or with low capacity.
Ni-MH and 9V batteries are charged using the CC (constant current) method with very precise dV / PVD detection - charging is completed only when the maximum voltage on the battery is reached (the value of this voltage may be different for each battery).
In addition, the charger is equipped with a number of safety features such as:
- against overloading,
- against excessive discharge of cells,
- short-circuit / overload,
- Thermal
- against reverse polarity of cells.,

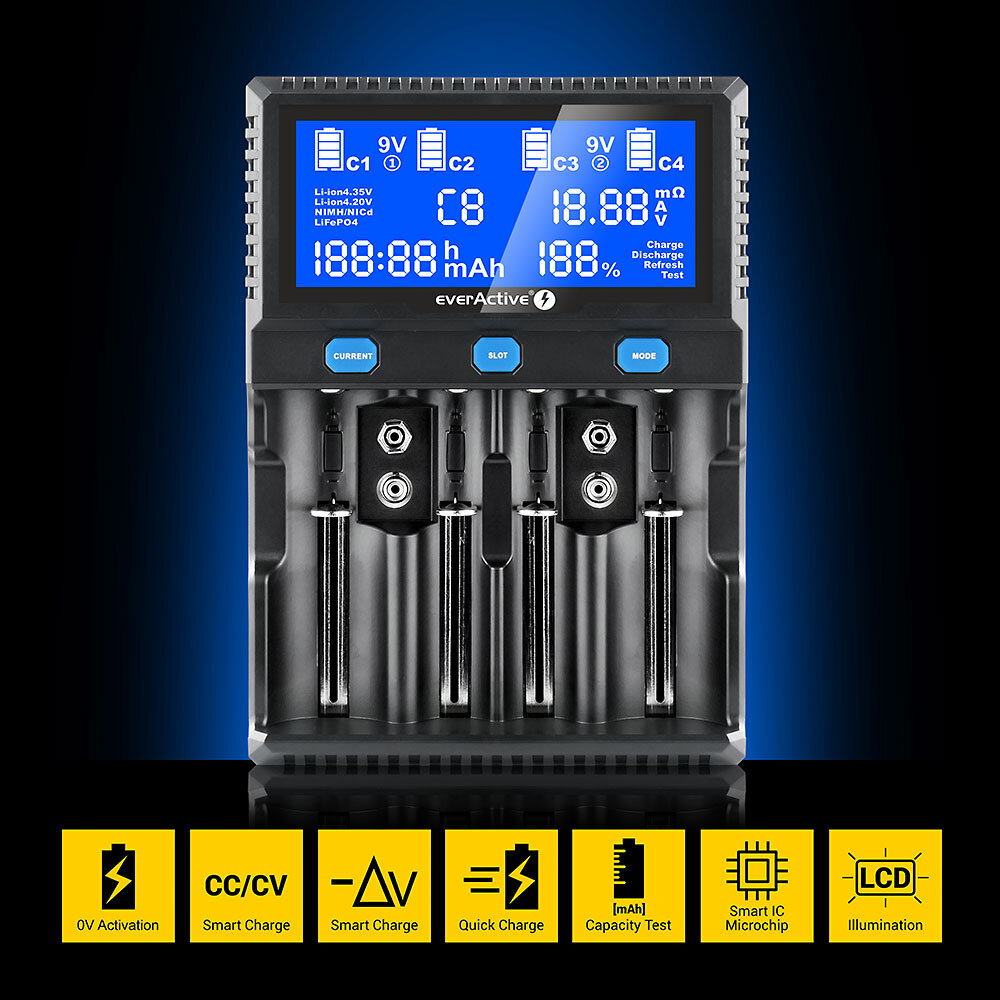

Wide compatibility is not the only advantage of this charger. Large, easy-to-read display with backlight shows all the most important values at all times:
|
Key features: |

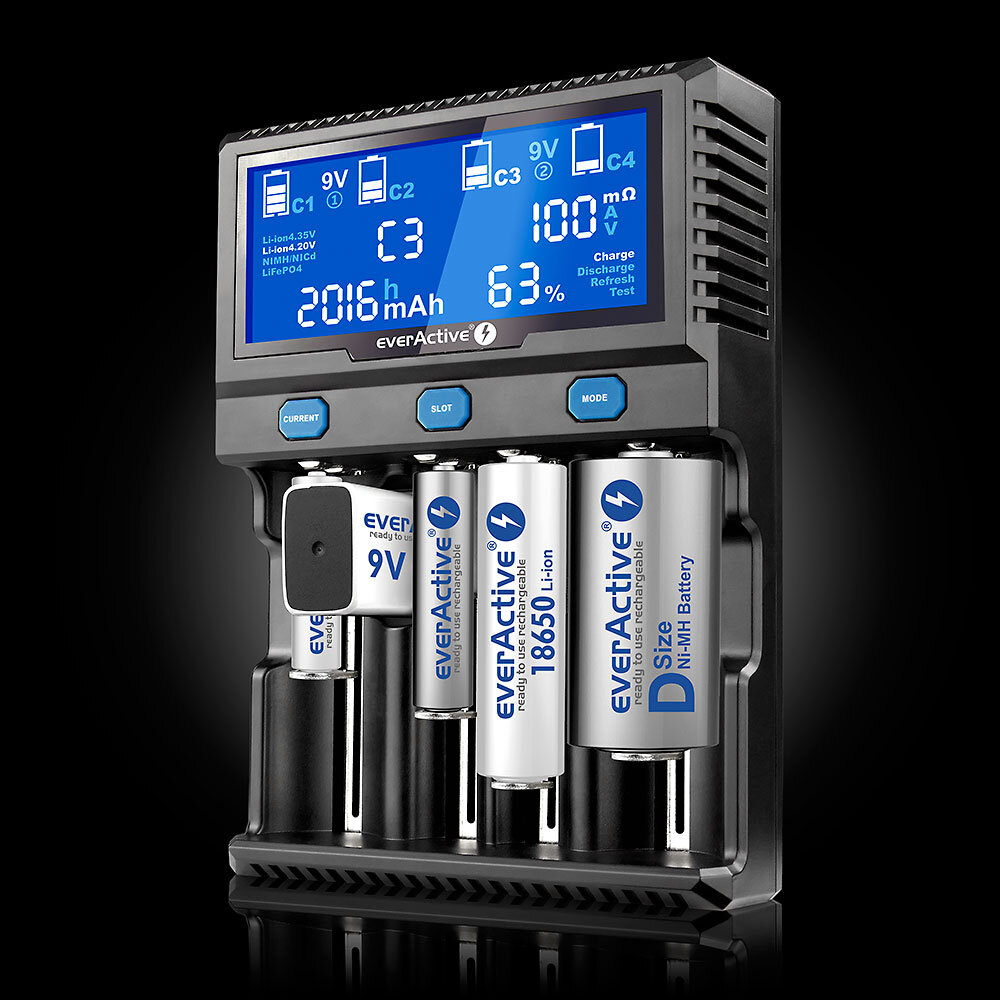

The charger will handle any cylindrical battery with a length of 32-76 mm and a maximum diameter of up to 33 mm.
In the UC4200, we can easily charge the popular 18650 batteries, both with and without electronic protection. Protected 20700/21700 batteries are also no problem for the company.
The charger has a dual input voltage: 12V DC The charger has an integrated AC adapter - power cable included, car adapter available separately.
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.8-3.85V, protected (with PCM/PCB)
- Li-ion batteries 3.8-3.85V, unprotected
- LiFePO4 Batteries
- Ni-MH batteries
- 6F22/9V batteries
- 12 V DC / 3000 mA
- AC 100-240V, 50-60Hz
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- Charge
- Discharge
- Refresh/Cycle(Rozładowanie z odświeżaniem)
- Capacity measurement in mAh (Test)
- Measurement of internal resistance in mOhm (Quick test)
- Adjustable - 200mA / 2000mA per channel / slot for Li-ion / Li-FePO4(2000mA tylko dla kanałów 1 i 4)
- Adjustable - 200mA - 1000mA per channel/slot for Ni-MH
- Adjustable - 60mA /120mA for 9V batteries
- Li-ion 4.2V ±0,05V
- Li-HV 4.35V ±0,05V
- Li-FePO4 3.65V ±0.05V
- Ni-MH ~1.45V-1.55V dV/PVD
- 200mA /400mA(w zależności od wybranego prądu ładowania)
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Overload
- Thermal - before overheating of batteries
- Before reverse polarity of cells

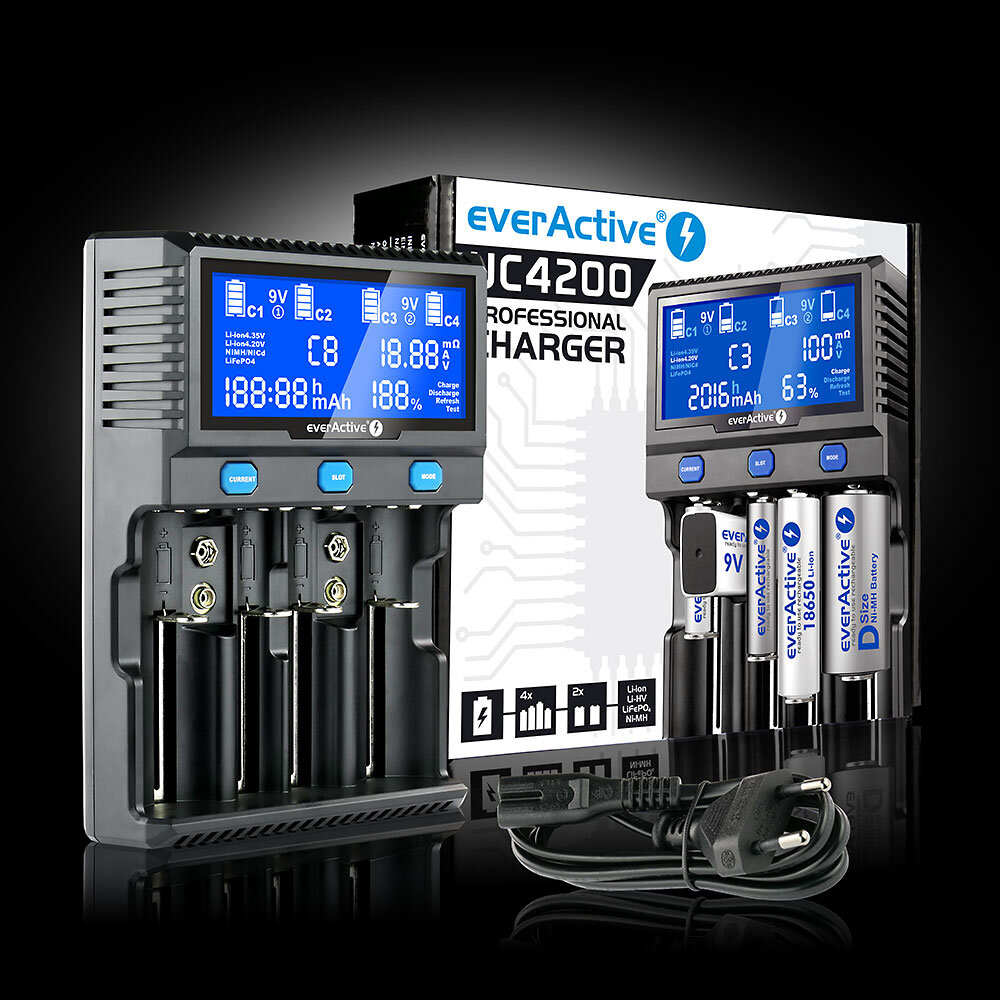

- UC-4200 Charger, 1m Power Cable, User Manual
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.8-3.85V, protected (with PCM/PCB)
- Li-ion batteries 3.8-3.85V, unprotected
- LiFePO4 Batteries
- Ni-MH batteries
- 6F22/9V batteries
- 12 V DC / 3000 mA
- AC 100-240V, 50-60Hz
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- Charge
- Discharge
- Refresh/Cycle(Rozładowanie z odświeżaniem)
- Capacity measurement in mAh (Test)
- Measurement of internal resistance in mOhm (Quick test)
- Adjustable - 200mA / 2000mA per channel / slot for Li-ion / Li-FePO4(2000mA tylko dla kanałów 1 i 4)
- Adjustable - 200mA - 1000mA per channel/slot for Ni-MH
- Adjustable - 60mA /120mA for 9V batteries
- Li-ion 4.2V ±0,05V
- Li-HV 4.35V ±0,05V
- Li-FePO4 3.65V ±0.05V
- Ni-MH ~1.45V-1.55V dV/PVD
- 200mA /400mA(w zależności od wybranego prądu ładowania)
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Overload
- Thermal - before overheating of batteries
- Before reverse polarity of cells
- UC-4200 Charger, 1m Power Cable, User Manual
