UT202A+ UNI-T Clamp Meter

product brand:

UNIT

EAN:

5900804100775

DC voltage measurement: 600mV~600V
AC voltage measurement: 6V~600V
AC current measurement: 6A~600A
resistance measurement in the range: 600Ω~60MΩ

View full product description

new

UT202A+ UNI-T Clamp Meter

Product Description

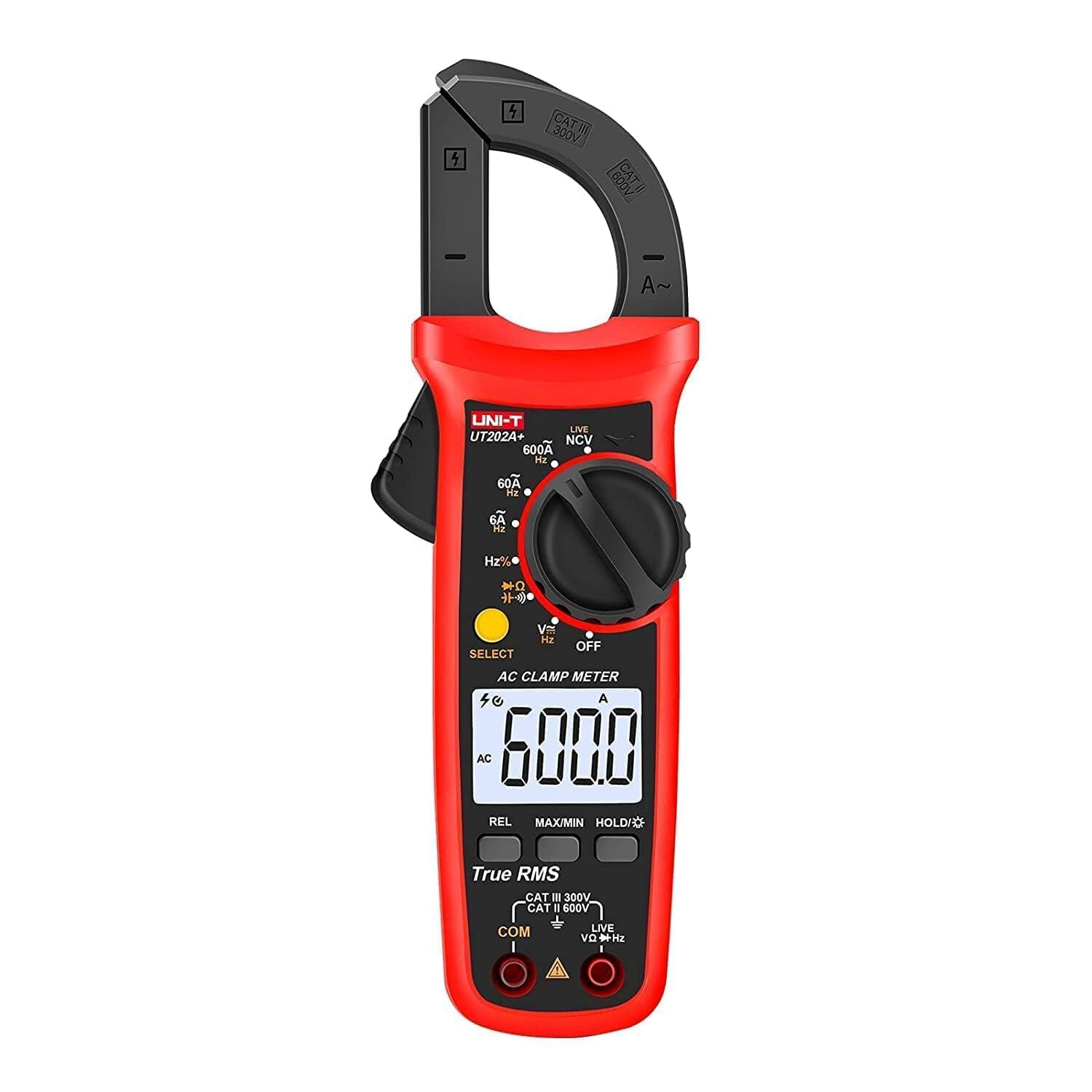

The Uni-T UT202A+ is a universal clamp meter with True RMS function, designed for accurate measurements of AC current up to 600 A. The device offers a wide range of measurement functions and a high level of safety, making it suitable for both service and installation work.

Key features:

AC current measurement with clamps: up to 600 A
AC/DC voltage measurement: up to 600 V
True RMS – accurate measurements in real conditions
Measurement of resistance, capacitance and frequency
Continuity test (with buzzer) and diode test
Non-Contact Voltage Detection (NCV)
MIN/MAX display, HOLD function, relative measurement (REL)
6000 count backlit LCD screen
Automatic change of measuring ranges

Specifications:

AC Current: 0 to 600 A (accuracy: +/-(2% + 10 digits))
AC Voltage: 0-600V (+/-(0.8% + 5 digits))
DC Voltage: 0-600 V (+/-(0.5% + 2 digits))
Resistance: up to 60 MΩ
Capacitance: up to 60 mF
Frequency: 10 Hz – 10 kHz
NCV detection and phase conductor detection
Display: LCD, 6000 dots, 37 × 25 mm
Power supply: 2 × AAA (included)
Clamp hole diameter: 28 mm
Dimensions: 215 × 63 × 36 mm
Weight: 248 g (with batteries)
