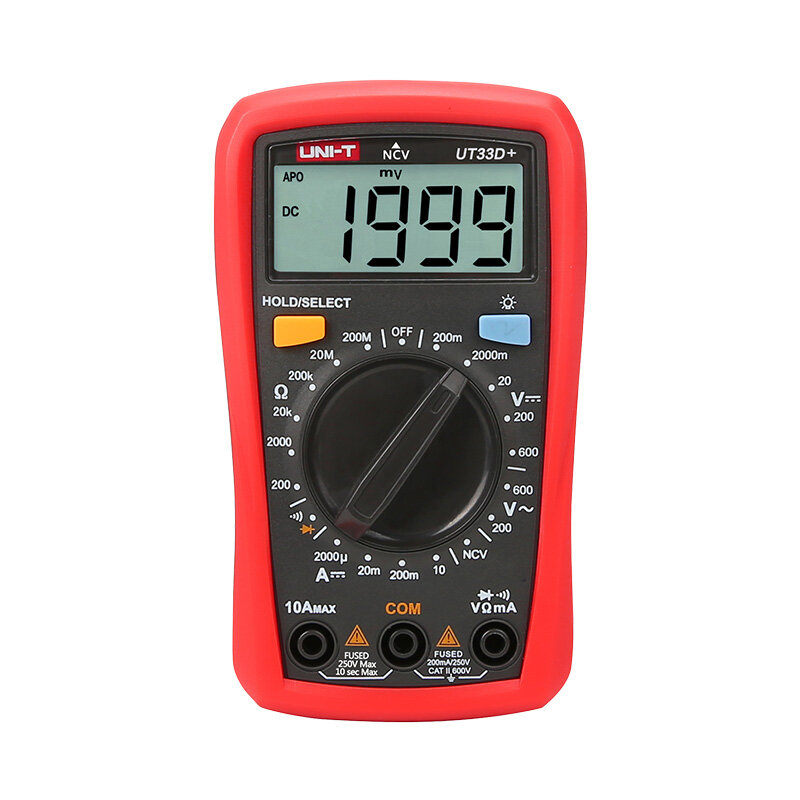

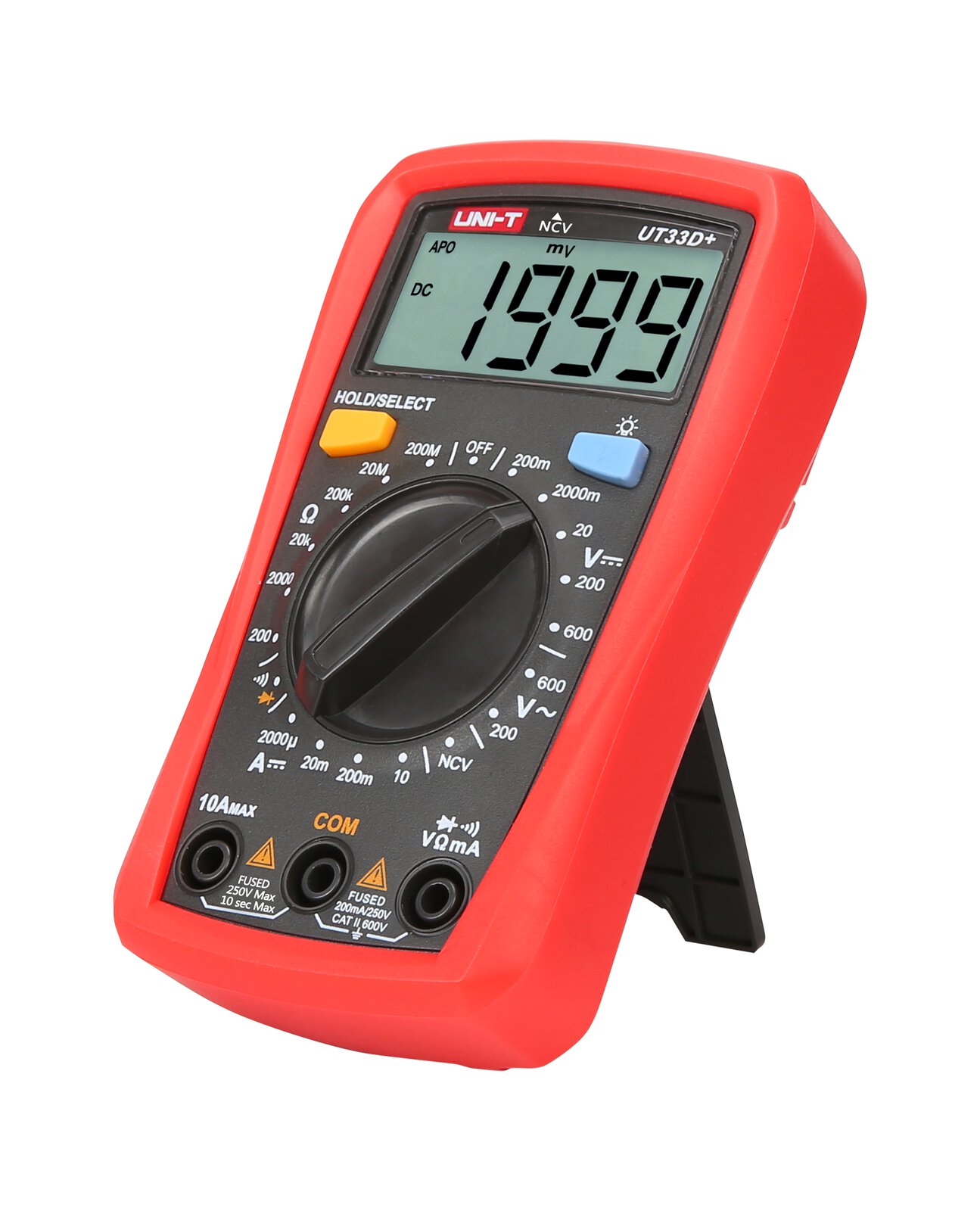

The UNI-T UT33D+ universal meter is an advanced measuring device dedicated to specialists and electronics enthusiasts.
The device allows for accurate measurements of both direct and alternating voltage, current and resistance in various ranges.
The multimeter is equipped with a function of diode testing and checking the continuity of the circuit. It stands out for its practical features, such as manual change of measurement ranges, electric field detection and the ability to freeze the last reading on the screen.
An easy-to-read, backlit LCD screen shows a maximum reading of 2000 units, and a low battery indicator lets you know when it's time to replace it.
UT33D+ measurement capabilities
- DC Voltage: 200mV/2000mV/20V/200V/600V+/-(0.5%+2)
- AC Voltage: 200V/600V+/-(1.2%+3)
- DC current: 2000 μA / 20 mA / 200 mA / 10 A +/-(1%+2)
- Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm +/-(0.8%+2)
- Diode Test
- Checking the continuity of the circuit
- Electric Field Detection
Innovative features:
The UNI-T UT33D+ universal meter is a versatile device designed for professionals and electronics enthusiasts. Designed with precision in mind, it offers a wide range of measurement functions that work well in a variety of scenarios.
- Manual change of measuring ranges: The meter remains in the selected measuring range regardless of the size of the measured value.
- Electric field detection function: You can detect the presence of AC voltage without contact. Useful for detecting wires in the wall.
- Last Indication Freeze: Ability to pause indications for accurate analysis.
- Low Battery Indicator: Indicates when the battery needs to be replaced.
- Backlit LCD screen: Allows you to work in low-light conditions.

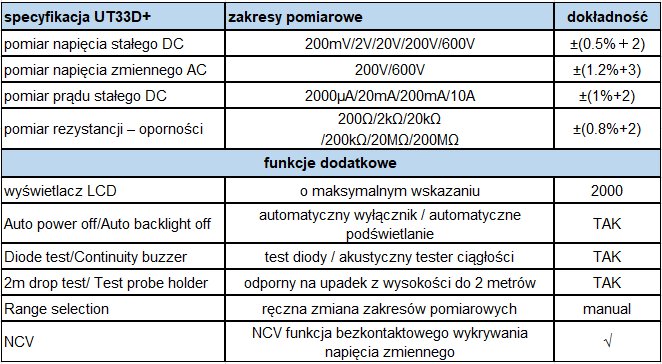

UT33D+ Multimeter Specifications
- MEASURING RANGES
- DC Voltage: 200mV/2000mV/20V/200V/600V+/-(0.5%+2)
- AC Voltage: 200V/600V+/-(1.2%+3)
- DC current: 2000 μA / 20 mA / 200 mA / 10 A +/-(1%+2)
- Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm +/-(0.8%+2)
- Diode Test
- Checking the continuity of the circuit
- Non-Contact Alternating Voltage (NCV) Detection
- ADDITIONAL FEATURES
- Manual change of measuring ranges
- Electric Field Detection Function
- Freeze the last indication
- Low battery indicator
- Maximum Read: 2000
- Backlit LCD screen
- Miernik UT33D+
- Przewody pomiarowe
- Holster
- Baterie
- 2x AAA
- 134 x 77 x 47 mm
- 206
- Miernik UT33D+
- Przewody pomiarowe
- Holster
- Baterie
- 2x AAA
- 134 x 77 x 47 mm
- 206
