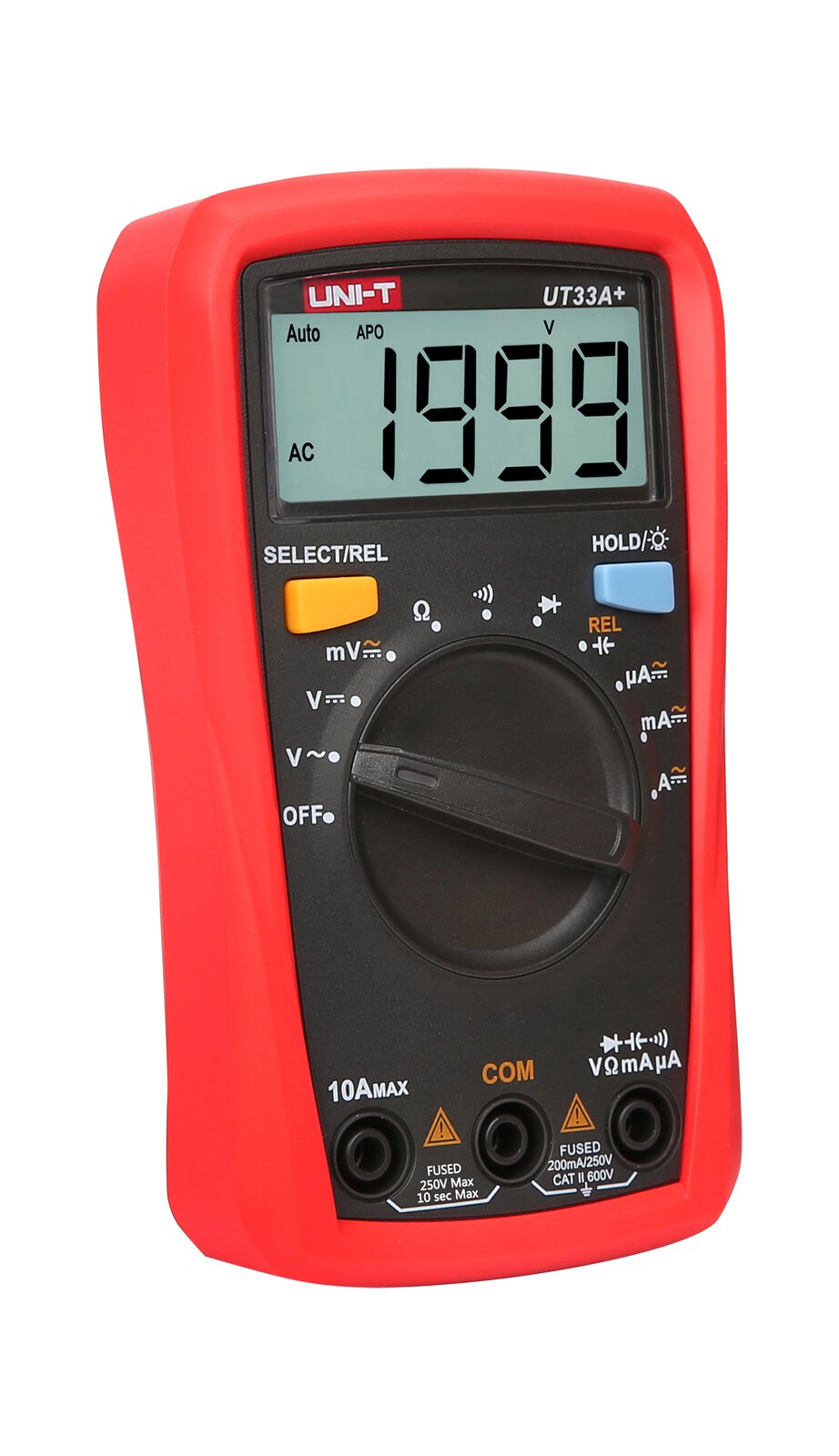

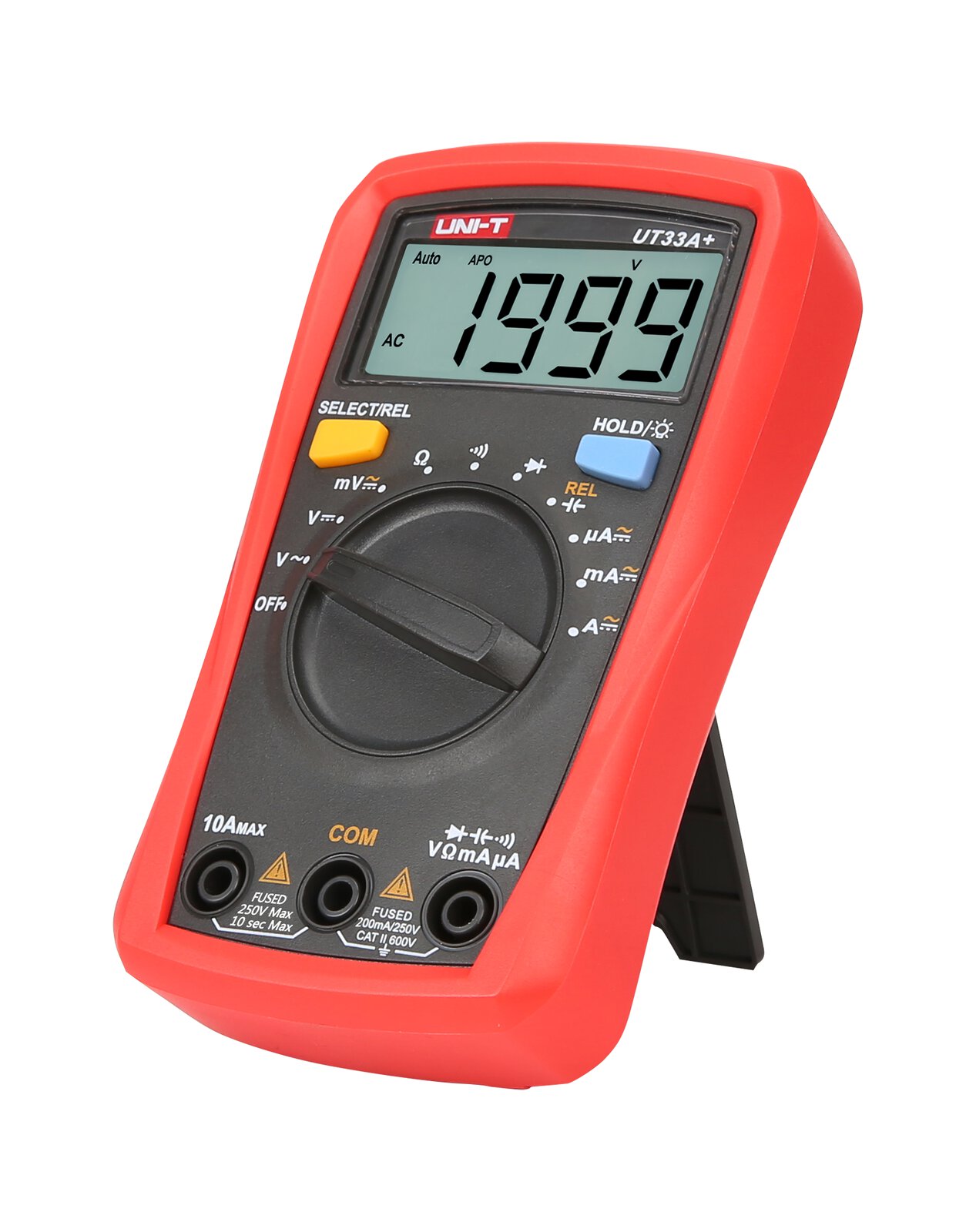

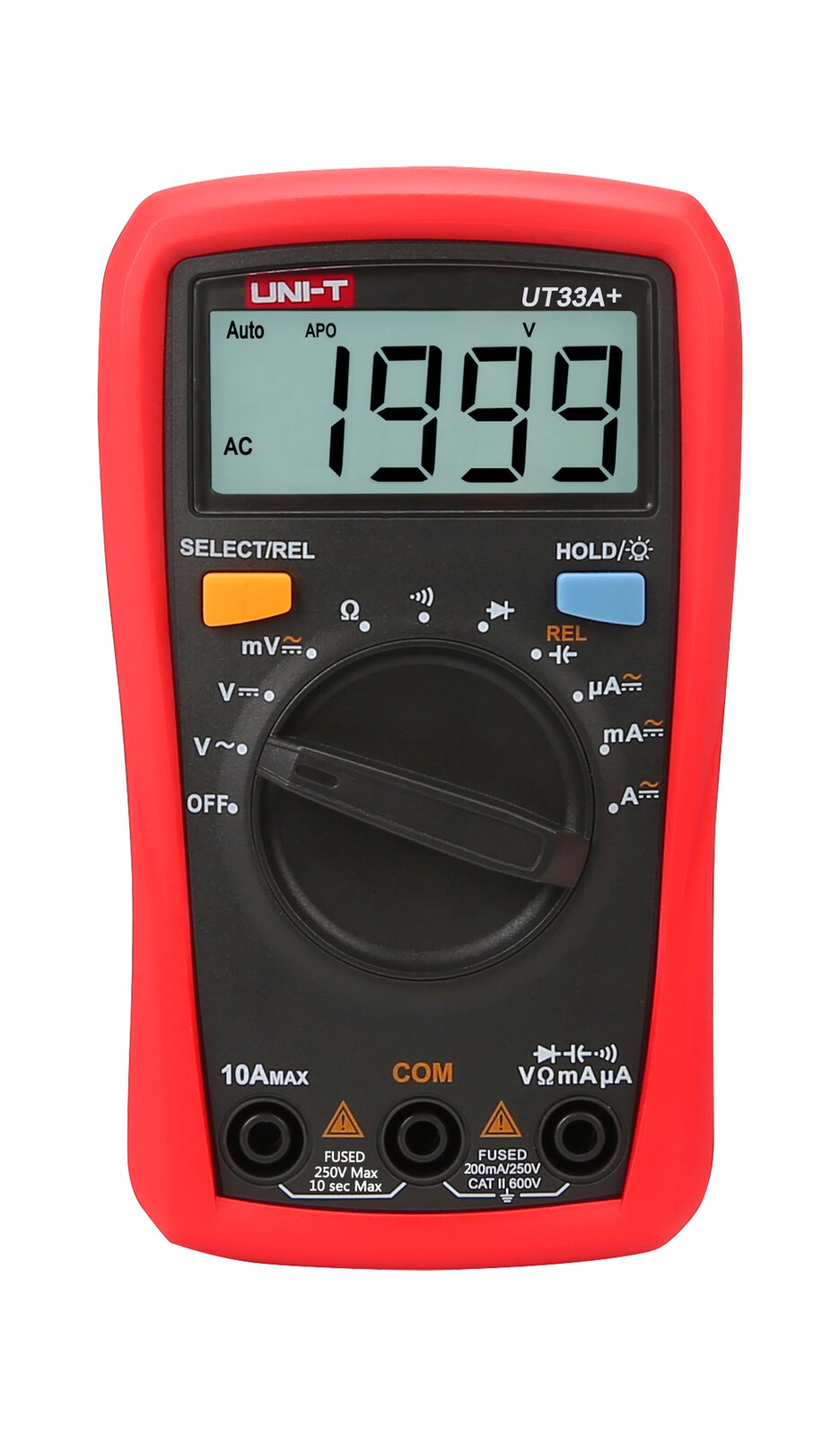

The UT33A+ meter from UNI-T is a compact and precise universal meter. A multimeter is an essential tool for any electronics engineer. Useful in every workshop.
It allows you to measure AC and DC voltage up to 600V and AC and DC current up to 10A.

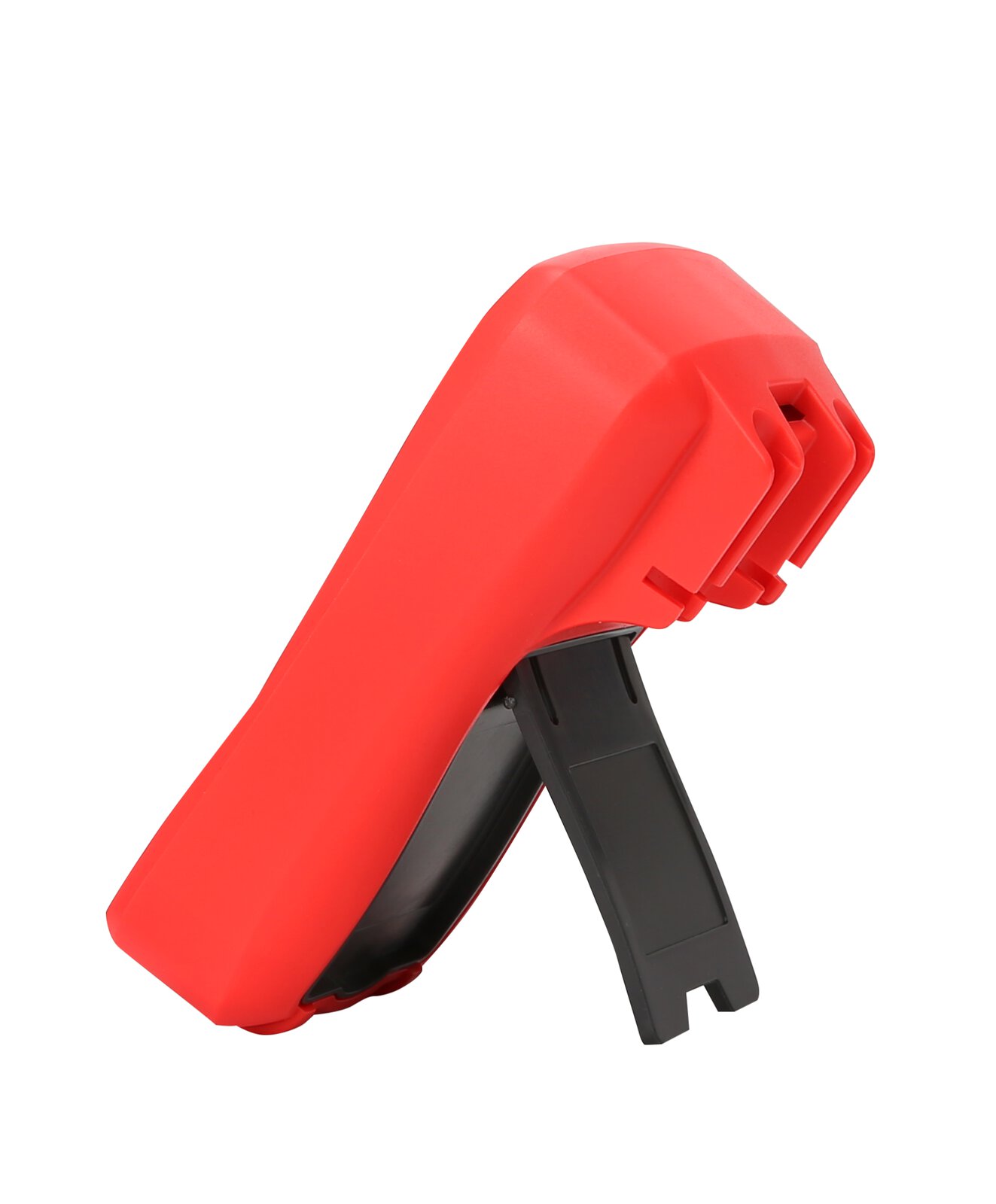

Equipped with diode testing and circuit continuity check functions. It has a backlit LCD screen, automatic range change, and is powered by two AAA batteries (included). The set includes batteries, test leads and a practical holster (rubber housing with stand). Ideal for professionals and electronics hobbyists.
UT33A+ measurement capabilities
- DC Voltage: 0.1 mV to 600 V with +/-(0.5%+2) precision
- AC Voltage: 0.1 mV to 600 V with +/-(0.7%+3) precision
- DC current: 0.1 μA to 10 A with +/-(1%+2) precision
- AC current: 0.1 μA to 10 A with +/-(1.2%+3) precision
- Resistance: 0.1 Ohm to 200 MOhm with +/-(0.8%+2) precision
- Capacitance: 0.001 nF to 2 mF with +/-(4%+8) precision
- Diode test and circuit continuity check
Innovative features:
- Automatic change of measurement ranges: The meter adapts to the measurement, eliminating the need for manual range setting.
- Relative measurement function: Especially useful for capacitance measurement.
- Last Indication Freeze: Ability to pause indications for accurate analysis.
- Low Battery Indicator: Indicates when the battery needs to be replaced.
- Backlit LCD screen: Allows you to work in low-light conditions.

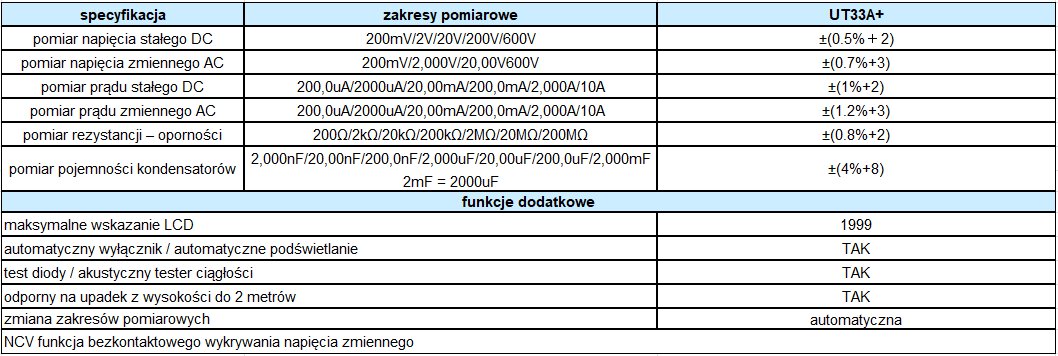

UT33A+ specification
- MEASURING RANGES
- DC Voltage: 200mV/2000mV/20V/200V/600V+/-(0.5%+2)
- AC Voltage: 200mV/2V/20V/200V/600V+/-(0.7%+3)
- DC Current: 200 μA / 2000 μA / 20 mA / 200 mA / 2 A / 10 A +/-(1%+2)
- AC current: 200 μA / 2000 μA / 20 mA / 200 mA / 2 A / 10 A +/-(1.2%+3)
- Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm +/-(0.8%+2)
- Capacitance: 2 nF / 20 nF / 200 nF / 2 uF / 20 uF / 200 uF / 2 mF +/-(4%+8)
- Diode Test
- Checking the continuity of the circuit
- ADDITIONAL FEATURES
- Automatic change of measuring ranges
- Relative measurement function (only applicable to capacitance measurement)
- Freeze the last indication
- Low battery indicator
- Maximum Read: 2000
- Backlit LCD screen
Product features Uni-T UT33A+ Multimeter
The set includes
- Miernik UT33A+
- Przewody pomiarowe
- Holster
- Baterie
Power
- 2x AAA
Dimensions [mm]
- 134 x 77 x 47 mm
Scales [g]
- 206
Warranty [miesiące]
24
Product features Uni-T UT33A+ Multimeter
The set includes
- Miernik UT33A+
- Przewody pomiarowe
- Holster
- Baterie
Power
- 2x AAA
Dimensions [mm]
- 134 x 77 x 47 mm
Scales [g]
- 206
Warranty [miesiące]
24
