Uni-T UT890C Multimeter

product brand:

UNIT

EAN:

5900804142188

DC measurement: 600mV~1000V
AC measurement: 6V~750V
ACV Bandwidth: 10Hz~10kHz
measurement DC current: 60uA~20A
AC current measurement: 60uA~20A
resistance: 600Ω~60MΩ
capacitance measurement: 6.00000nF~100.0mF
temperature measurement: –40°C~1000°C

View full product description

Uni-T UT890C Multimeter

Product Description

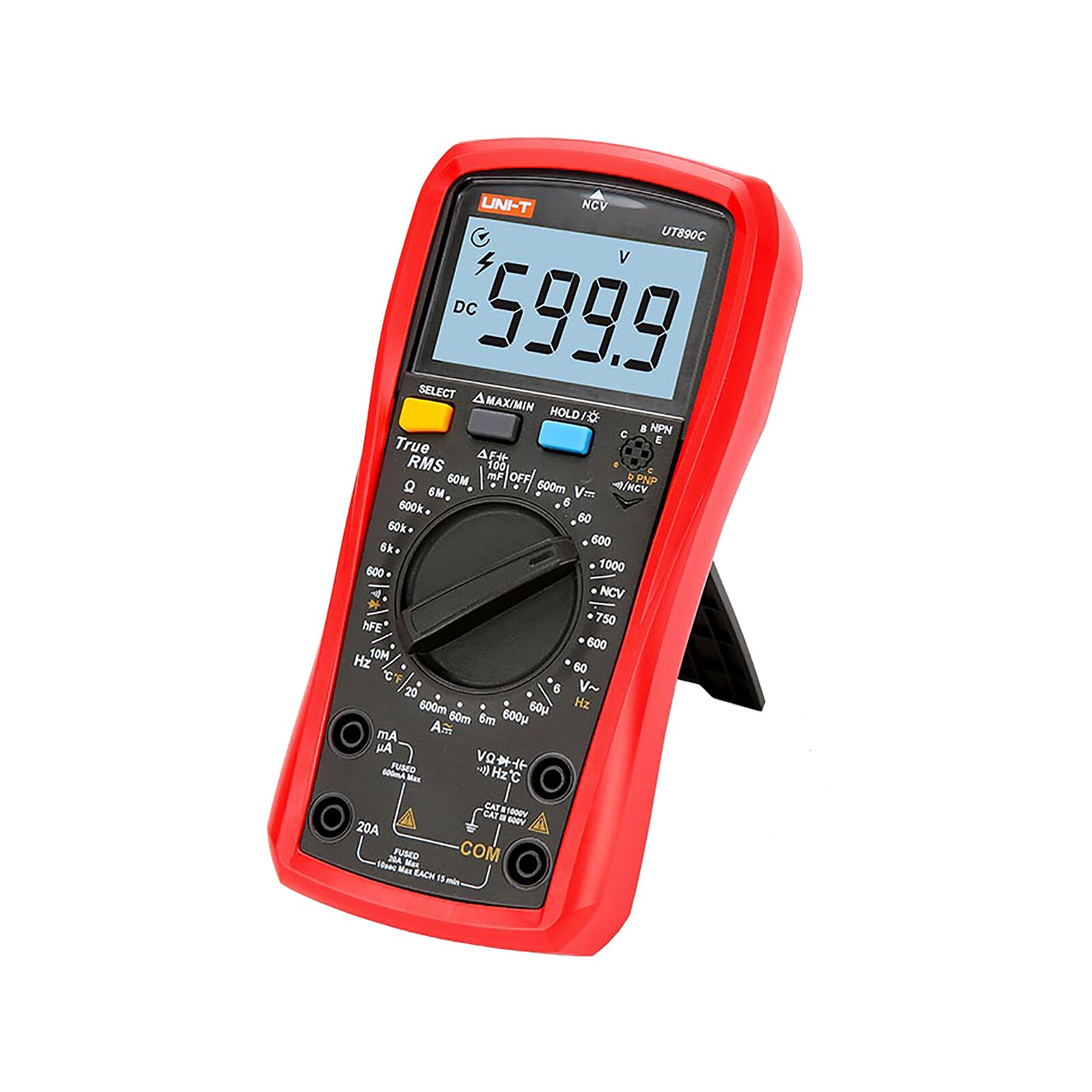

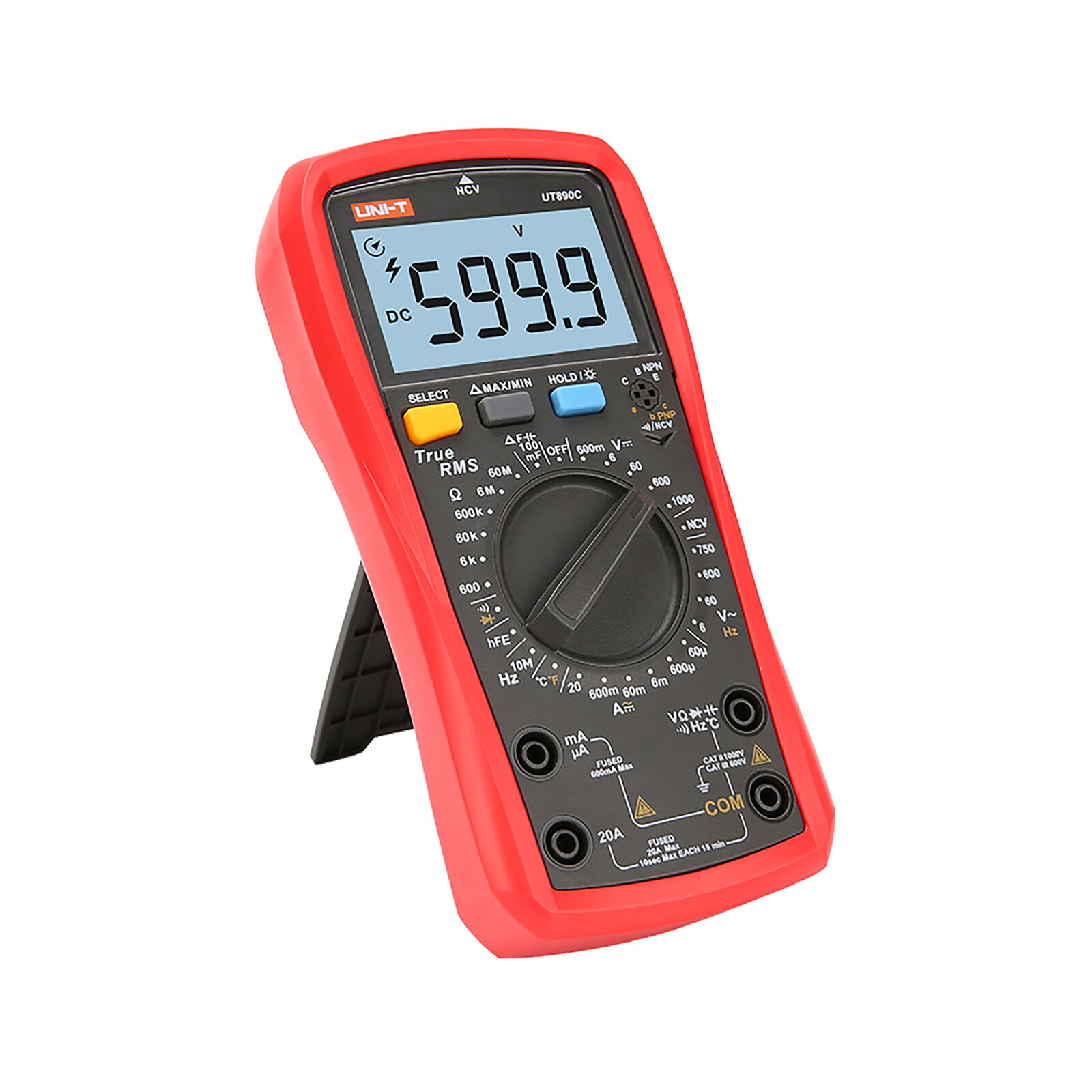

The UNI-T UT890C NCV universal meter is an advanced measuring tool that is indispensable in every electronics technician's workshop.

The multimeter allows for precise measurements of direct voltage (up to 1000 V) and alternating voltage (up to 750 V). It allows you to measure current in fixed and variable ranges up to 20 A.

Measurement of resistance up to 60 MOhm, capacitance up to 100 mF and frequency in the range up to 9.999 MHz.

The UNI-T UT890C NCV is also equipped with a temperature measurement function ranging from -40 C to 1000 C. A useful addition is also the measurement of the hFE coefficient of transistors, the diode test and the check of circuit continuity.

Innovative features:

The meter has a number of additional functions to facilitate work, such as electric field detection (NCV), manual change of measurement ranges, or True RMS.

Built-in notifications about fuse blowing and overload guarantee safe operation with the device.

The "hold" function allows you to pause the last reading, and the backlight of the LCD screen allows you to work even in dimly lit places. The meter is equipped with a low battery indicator and an automatic shut-off function.

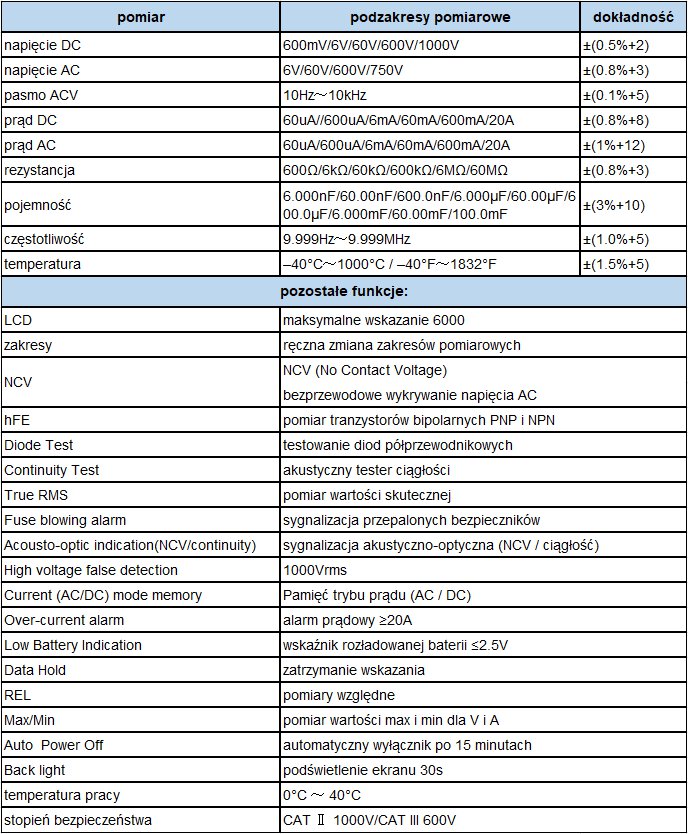

UT890C Meter Specification

MEASUREMENT RANGES:
- DC Voltage: 600mV / 6V / 60V / 600V / 1000V +/-(0.5%+2)
- AC Voltage: 6V/60V/600V/750V+/-(0.8%+3)
- DC Current: 60uA / 600uA / 6mA / 60mA / 600mA / 20A +/-(0.8%+8)
- AC Current: 60uA / 600uA / 6mA / 60mA / 600mA / 20A +/-(1%+12)
- Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm +/-(0.8%+3)
- Capacitance: 6 nF / 60 nF / 600 nF / 6 uF / 60 uF / 600 uF / 6 mF / 60 mF / 100 mF +/-(3%+10)
- Frequency: 9.999Hz~9.999MHz +/-(1%+5)
- Temperature: -40 C~1000 C; -40 C~1832 C +/-(1%+5)
- Measuring the hFE of transistors
- Diode Test
- Checking the continuity of the circuit
ADDITIONAL FEATURES:
- NCV (Electric Field Detection Function)
- Manual change of measuring ranges
- True RMS
- Fuse Blow Notification
- Overload notification: >= 20 A
- REL Mode: Reset the reading
- Freeze the last indication
- Display backlighting
- Maximum/Minimum Value Storage
- Sound and light signal: during continuity and NCV measurement
- Auto shut-off
- Low battery indicator
- Maximum Read: 6000
WORKING ENVIRONMENT:
- Operating Temperature: 0 C ~ 40 C (32 F ~ 104 F)
- Storage Temperature: -10 C ~ 50 C (14 F ~ 122 F)
- Relative Humidity: 0 C ~ 30 C =<75%, 30 C ~ 40 C =<50%
- Working Altitude: 0~2000m
